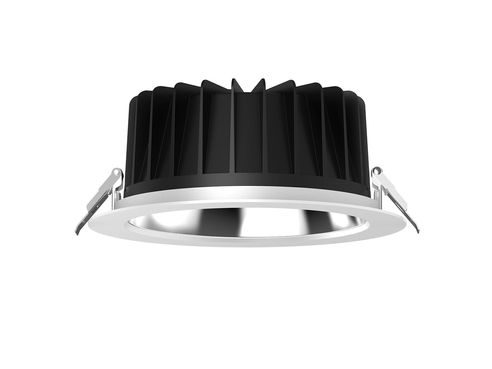

RASTA
Our Rasta downlight is the perfect option that provides all of these characteristics including many others – its ease of installation, the SMD version comes with a convertible switch, Die-cast Aluminum housing that provides great thermal regulation, and its suitable for various application areas.
FEATURES
Light source: SMD
Beam Angle: 80°
Driver: Build-out (External)
IP54 Rating, CRI ≥80
Longevity up to 60,000h
Color options: White, Matt Silver, Bright Silver, Black
Reflector: Aluminum
Dimming options: Non-dim, Triac dim, 0-10V, DALI
CCT: 3000K / 4000K / 5000K / 5700K
APPLICATION AREAS
Common Lighting: Offices, Markets, Shops, Educational Institutions, Buildings, etc.
Public Areas: Stairs, Lobbies, Hallway, etc.
SPECIFICATIONS
Rasta 3" 10W #1
Code
AC301A179D10xx
Cutout
Ø89 mm
Dimensions
Ø96*55 mm
Input
10 W
Luminous Flux
SMD (1-CCT) 710 - 800 lm
SMD (3-CCT) 710 - 830 lm
Rasta 3" 10W #2
Code
AC301A179D10xx
Cutout
Ø96 mm
Dimensions
Ø111*55 mm
Input
10 W
Luminous Flux
SMD (1-CCT) 720 - 800 lm
SMD (3-CCT) 720 - 870 lm
Rasta 3" 13W
Code
AC301A179D13xx
Cutout
Ø96 mm
Dimensions
Ø111*55 mm
Input
13 W
Luminous Flux
SMD (1-CCT) 930 - 1040 lm
SMD (3-CCT) 930 - 1140 lm
Rasta 4" 10W
Code
AC401A179D10xx
Cutout
Ø136 mm
Dimensions
Ø146*79 mm
Input
10 W
Luminous Flux
SMD (1-CCT) 820 - 900 lm
SMD (3-CCT) 820 - 900 lm
Rasta 4" 18W
Code
AC401A179D18xx
Cutout
Ø136 mm
Dimensions
Ø146*79 mm
Input
18 W
Luminous Flux
SMD (1-CCT) 1650 - 1800 lm
SMD (3-CCT) 1650 - 1950 lm
Rasta 4" 25W
Code
AC401A179D25xx
Cutout
Ø136 mm
Dimensions
Ø146*79 mm
Input
25 W
Luminous Flux
SMD (1-CCT) 2100 - 2250 lm
SMD (3-CCT) 2100 - 2250 lm
Rasta 6" 18W
Code
AC601A179D18xx
Cutout
Ø166 mm
Dimensions
Ø173*91 mm
Input
18 W
Luminous Flux
SMD (1-CCT) 1750 - 1900 lm
SMD (3-CCT) 1750 - 1900 lm
Rasta 6" 25W
Code
AC601A179D25xx
Cutout
Ø166 mm
Dimensions
Ø173*91 mm
Input
25 W
Luminous Flux
SMD (1-CCT) 2350 - 2550 lm
SMD (3-CCT) 2250 - 2650 lm
Rasta 6" 35W
Code
AC601A179D35xx
Cutout
Ø166 mm
Dimensions
Ø173*91 mm
Input
35 W
Luminous Flux
SMD (1-CCT) 2940 - 3180 lm
SMD (3-CCT) 2940 - 3180 lm
Rasta 8" 18W
Code
AC801A179D18xx
Cutout
Ø211 mm
Dimensions
Ø229*100 mm
Input
18 W
Luminous Flux
SMD (1-CCT) 1800 - 1980 lm
SMD (3-CCT) 1800 - 2070 lm
Rasta 8" 25W
Code
AC801A179D25xx
Cutout
Ø211 mm
Dimensions
Ø229*100 mm
Input
25 W
Luminous Flux
SMD (1-CCT) 2450 - 2600 lm
SMD (3-CCT) 2450 - 2800 lm
Rasta 8" 35W
Code
AC801A179D35xx
Cutout
Ø211 mm
Dimensions
Ø229*100 mm
Input
35 W
Luminous Flux
SMD (1-CCT) 3600 - 4000 lm
SMD (3-CCT) 3750 - 4000 lm
Rasta 8" 40W
Code
AC801A179D40xx
Cutout
Ø211 mm
Dimensions
Ø229*100 mm
Input
40 W
Luminous Flux
SMD (1-CCT) 4000 - 4200 lm
SMD (3-CCT) 4000 - 4400 lm
Rasta 8" 45W
Code
AC801A179D45xx
Cutout
Ø211 mm
Dimensions
Ø229*100 mm
Input
45 W
Luminous Flux
SMD (1-CCT) 4500 - 4720 lm
SMD (3-CCT) 4500 - 4950 lm
