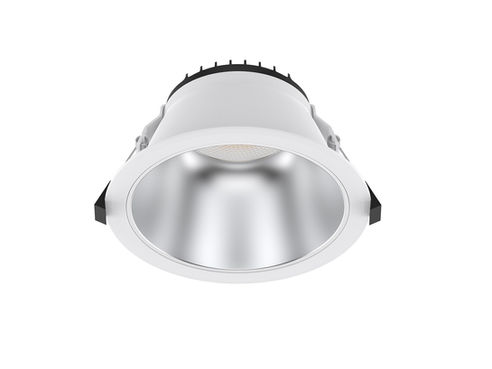

RAYLITE

RayLite combines advanced functionality with versatile design, offering a high-lumen SMD LED for outstanding energy efficiency. Its die-cast aluminum housing ensures excellent thermal regulation, promoting durability and longevity. Ray Lite supports both recessed and surface mounting, with optional accessories for 6-inch and 8-inch configurations. Featuring CCT adjustability and emergency lighting capability, this multifunctional luminaire is designed for maximum adaptability and performance.

FEATURES

Light source: SMD
Beam Angle: 60°
IP54 Rating, IK 03, CRI ≥80, UGR <19
Lumen Efficiency: 135lm/W
Longevity up to 50,000h
Driver: Built-Out
Dimming options: Traic / 0-10 /Dali
CCT: 3000K / 4000K / 5700K / 5700K

APPLICATION AREAS

Residential Spaces: Suitable for kitchens, living rooms, and hallways requiring adaptable lighting solutions.
Commercial Areas: Ideal for offices, retail spaces, and showrooms demanding efficient and adjustable illumination.
Public Facilities: Perfect for libraries, educational institutions, and emergency settings where versatility is essential.

TECHNICAL SPECIFICATIONS

RAYLITE - 3" 8W

Code

AC301412AD8XXX - EM (Optional)

Cutout

Ø91-96 mm

Dimensions

Ø116*68 mm

Power

Luminous Flux

SMD (Non-DIM) [1-CCT] 1050 lm

SMD (Non-DIM) [2-CCT] 1000 lm

RAYLITE - 4" 8W

Code

AC401412AD8XXX - EM (Optional)

Cutout

Ø121-131 mm

Dimensions

Ø146*80 mm

Power

Luminous Flux

SMD (Non-DIM) [1-CCT] 1160 lm

SMD (Non-DIM) [2-CCT] 960 lm

RAYLITE - 4" 10W

Code

AC401412AD10XXX - EM (Optional)

Cutout

Ø121-131 mm

Dimensions

Ø146*80 mm

Power

10W

Luminous Flux

SMD (Non-DIM) [1-CCT] 1450 lm

SMD (Non-DIM) [2-CCT] 1250 lm

RAYLITE - 4" 13W

Code

AC401412AD13XXX - EM (Optional)

Cutout

Ø121-131 mm

Dimensions

Ø146*80 mm

Power

13W

Luminous Flux

SMD (Non-DIM) [1-CCT] 1750 lm

SMD (Non-DIM) [2-CCT] 1750 lm

RAYLITE - 5" 15W

Code

AC501412AD15XXX - EM (Optional)

Cutout

Ø141-151 mm

Dimensions

Ø171*95 mm

Power

15W

Luminous Flux

SMD (Non-DIM) [1-CCT] 1950 lm

SMD (Non-DIM) [2-CCT] 1950 lm

RAYLITE - 5" 18W

Code

AC501412AD18XXX - EM (Optional)

Cutout

Ø141-151 mm

Dimensions

Ø171*95 mm

Power

18W

Luminous Flux

SMD (Non-DIM) [1-CCT] 2350 lm

SMD (Non-DIM) [2-CCT] 2200 lm

RAYLITE - 6" 15W

Code

AC601412AD15XXX - EM (Optional)

Cutout

Ø161-171 mm

Dimensions

Ø191*100 mm

Power

15W

Luminous Flux

SMD (Non-DIM) [1-CCT] 2050 lm

SMD (Non-DIM) [2-CCT] 1950 lm

RAYLITE - 6" 20W

Code

AC601412AD20XXX - EM (Optional)

Cutout

Ø161-171 mm

Dimensions

Ø191*100 mm

Power

20W

Luminous Flux

SMD (Non-DIM) [1-CCT] 2750 lm

SMD (Non-DIM) [2-CCT] 2550 lm

RAYLITE - 6" 25W

Code

AC601412AD25XXX - EM (Optional)

Cutout

Ø161-171 mm

Dimensions

Ø191*100 mm

Power

25W

Luminous Flux

SMD (Non-DIM) [1-CCT] 3350 lm

SMD (Non-DIM) [2-CCT] 3050 lm

RAYLITE - 8" 18W

Code

AC801412AD18XXX - EM (Optional)

Cutout

Ø201-211 mm

Dimensions

Ø236*114 mm

Power

18W

Luminous Flux

SMD (Non-DIM) [1-CCT] 2550 lm

SMD (Non-DIM) [2-CCT] 2550 lm

RAYLITE - 8" 25W

Code

ACX01412AD25XXX - EM (Optional)

Cutout

Ø201-211 mm

Dimensions

Ø236*114 mm

Power

25W

Luminous Flux

SMD (Non-DIM) [1-CCT] 3550 lm

SMD (Non-DIM) [2-CCT] 3600 lm

RAYLITE - 8" 30W

Code

AC601412AD30XXX - EM (Optional)

Cutout

Ø201-211 mm

Dimensions

Ø236*114 mm

Power

30W

Luminous Flux

SMD (Non-DIM) [1-CCT] 4250 lm

SMD (Non-DIM) [2-CCT] 4250 lm

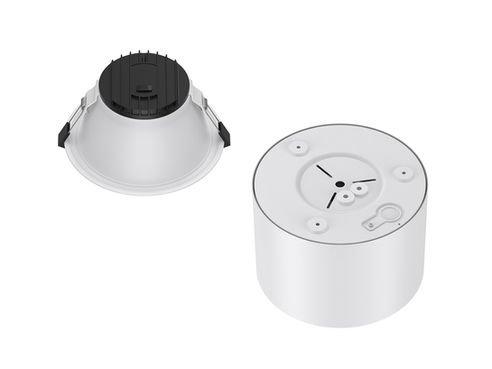

RAYLITE SURFACE MOUNTED - 6" (Only on Special Request)

Code

AC601412ADV2-XX-XXX - EM (Optional)

Dimensions

Ø204*143 mm

RAYLITE SURFACE MOUNTED - 8" (Only on Special Request)

Code

AC801412ADV2-XX-XXX - EM (Optional)

Dimensions

Ø249*156 mm
