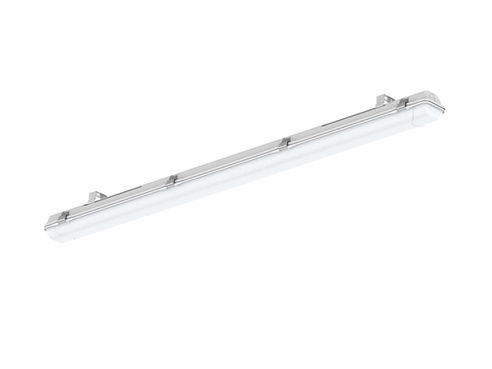

ACQUA E
(Tri Proof)
Our Acqua E (Tri Proof) light is special safety lights designed to have three or more forms of protection, Here the light fixtures are sealed and reinforced to have waterproof, dust-proof, vandal resistant and corrosion-proof capabilities, it is high quality LED batten that includes a high lumen light source, a robust design, and a high transmittance polycarbonate cover. Two buckle options are available for ease of assembly and disassembly, a prism design for lamp shade that creates a steady and low light output, and is the ideal replacement for traditional fluorescent battens.
FEATURES
6063 Aluminum heat-sink that provide great thermal regulation
Light source: SMD
Beam Angle: 120°
High lumen efficiency of 140lm/W
Buckle options: PC and stainless-steel (adjustable for self-locking / anti-theft mode)
IP66 Rating, IK08 Rating
Flammability Rating: UL94 V-2
Longevity up to 50,000h
CCT: 3000K / 4000K / 5000K / 5700K
Emergency version available
APPLICATION AREAS
It is suitable for areas that require chemical resistance, and is suitable for area with high humidity and dusty places.
Specialized Lighting: Factories, Car parks, warehouses, workshops, underground.
TECHNICAL SPECIFICATIONS
ACQUA E - 600mm - 8W
Code
A245103XXX8X
Dimensions
605*80*72 mm
Power
8W
Luminous Flux
SMD (Non-DIM) 1120lm
ACQUA E - 600mm - 17W
Code
A245103XXX17X
Dimensions
605*80*72 mm
Power
17W
Luminous Flux
SMD (Non-DIM) 2380lm
ACQUA E - 600mm - 25W
Code
A245103XXX25X
Dimensions
605*115*72 mm
Power
25W
Luminous Flux
SMD (Non-DIM) 3500lm
ACQUA E - 1200mm - 16W
Code
A245103XXX16X
Dimensions
1205*80*72 mm
Power
16W
Luminous Flux
SMD (Non-DIM) 2240lm
ACQUA E - 1200mm - 23W
Code
A245103XXX23X
Dimensions
1205*80*72 mm
Power
23W
Luminous Flux
SMD (Non-DIM) 3220lm
ACQUA E - 1200mm - 34W
Code
A245103XXX34X
Dimensions
1205*80*72 mm
Power
34W
Luminous Flux
SMD (Non-DIM) 4760lm
ACQUA E - 1200mm - 53W
Code
A245103XXX53X
Dimensions
1205*115*72 mm
Power
53W
Luminous Flux
SMD (Non-DIM) 7420lm
ACQUA E - 1500mm - 29W
Code
A245103XXX29X
Dimensions
1505*80*72 mm
Power
29W
Luminous Flux
SMD (Non-DIM) 4060lm
ACQUA E - 1500mm - 46W
Code
A245103XXX46X
Dimensions
1505*80*72 mm
Power
46W
Luminous Flux
SMD (Non-DIM) 6440lm
ACQUA E - 1500mm - 57W
Code
A245103XXX57X
Dimensions
1505*80*72 mm
Power
57W
Luminous Flux
SMD (Non-DIM) 7980lm
ACQUA E - 1500mm - 63W
Code
A245103XXX63X
Dimensions
1505*115*72 mm
Power
63W
Luminous Flux
SMD (Non-DIM) 8820lm
ACQUA E - 1800mm - 38W
Code
A245103XXX38X
Dimensions
1805*80*72 mm
Power
38W
Luminous Flux
SMD (Non-DIM) 5320lm
ACQUA E - 1800mm - 75W
Code
A245103XXX75X
Dimensions
1805*80*72 mm
Power
75W
Luminous Flux
SMD (Non-DIM) 10500lm
ACQUA E - 1800mm - 70W
Code
A245103XXX70X
Dimensions
1805*115*72 mm
Power
70W
Luminous Flux
SMD (Non-DIM) 9800lm
